Single unit dimensions and weight specifications: Length: 2010mm Width: 1780mm Height: 1780mm Weight: 4500KG

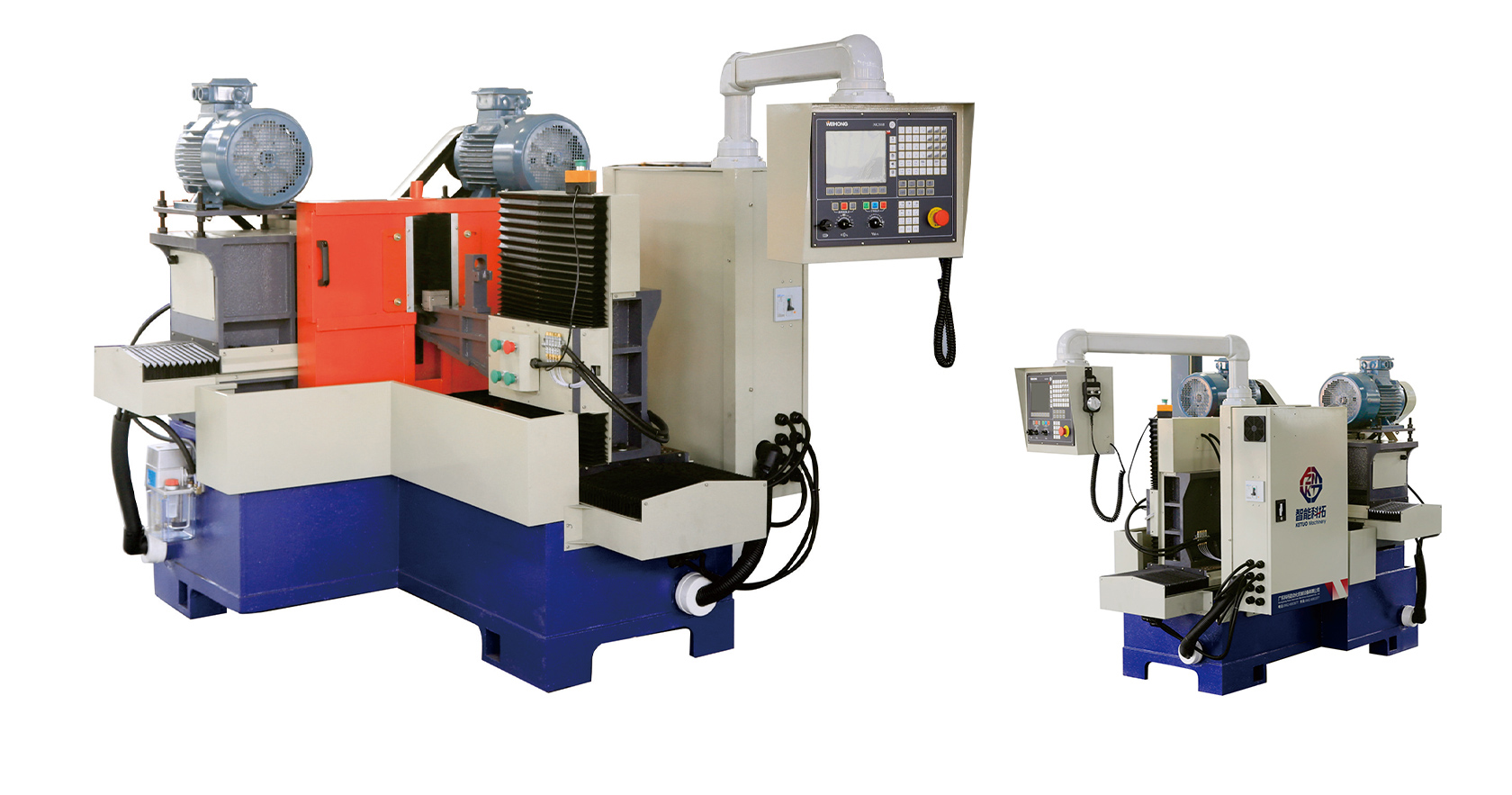

DOUBLE HOLLOW GRINDING MACHINE

(SEGMENTED GRINDING WHEELS)

TECHNICAL DATA SHEET
REQUEST QUOTE

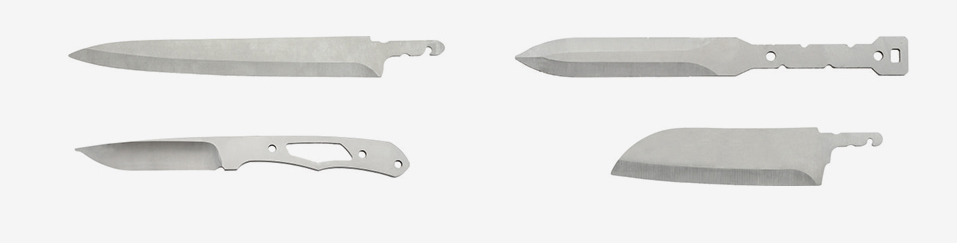

This grinding machine is specifically designed for workpieces that require double hollow grinding withright-angle positioning. lt uses cost-effective segmented grinding wheel abrasives and is easy to adjust during the processing, simplifying the operation procedure.
VIDEO
REQUEST INFORMATION
Technical Specifications

⚫Maximum grinding length:380mm


⚫Spindle drive power: Star-delta asynchronous motor7.5kw-11kw*2 (optional YE4 level energy-saving motor orpermanent magnet synchronous motor)


⚫Grinding wheel diameter:Below 300mm


⚫Mechanical transmission methods:
X-axis: P3 Heavy-duty roller linear guide/Cold rolled ball screw (optional ground ball screw)

Z1-axis: P3 Heavy-duty roller linear guide/Cold rolled ball screw (optional ground ball screw)

Z2-axis: P3 Heavy-duty roller linear guide/Cold rolled ball screw (optional ground ball screw)

Y-axis: P3 Heavy-duty roller linear guide /Cold rolled ball guide (optional ground ball screw)


⚫Drive system: Bus absolute value motor


⚫Lubrication system:Centralized centrallubrication pump


⚫Spindle:Self-developed high-strength spindle


⚫CNC system:WEIHONG NK280B system
