Single unit dimensions and weight specifications: Length: 4100mm Width: 1438mm Height: 2150mm Weight: 4900KG

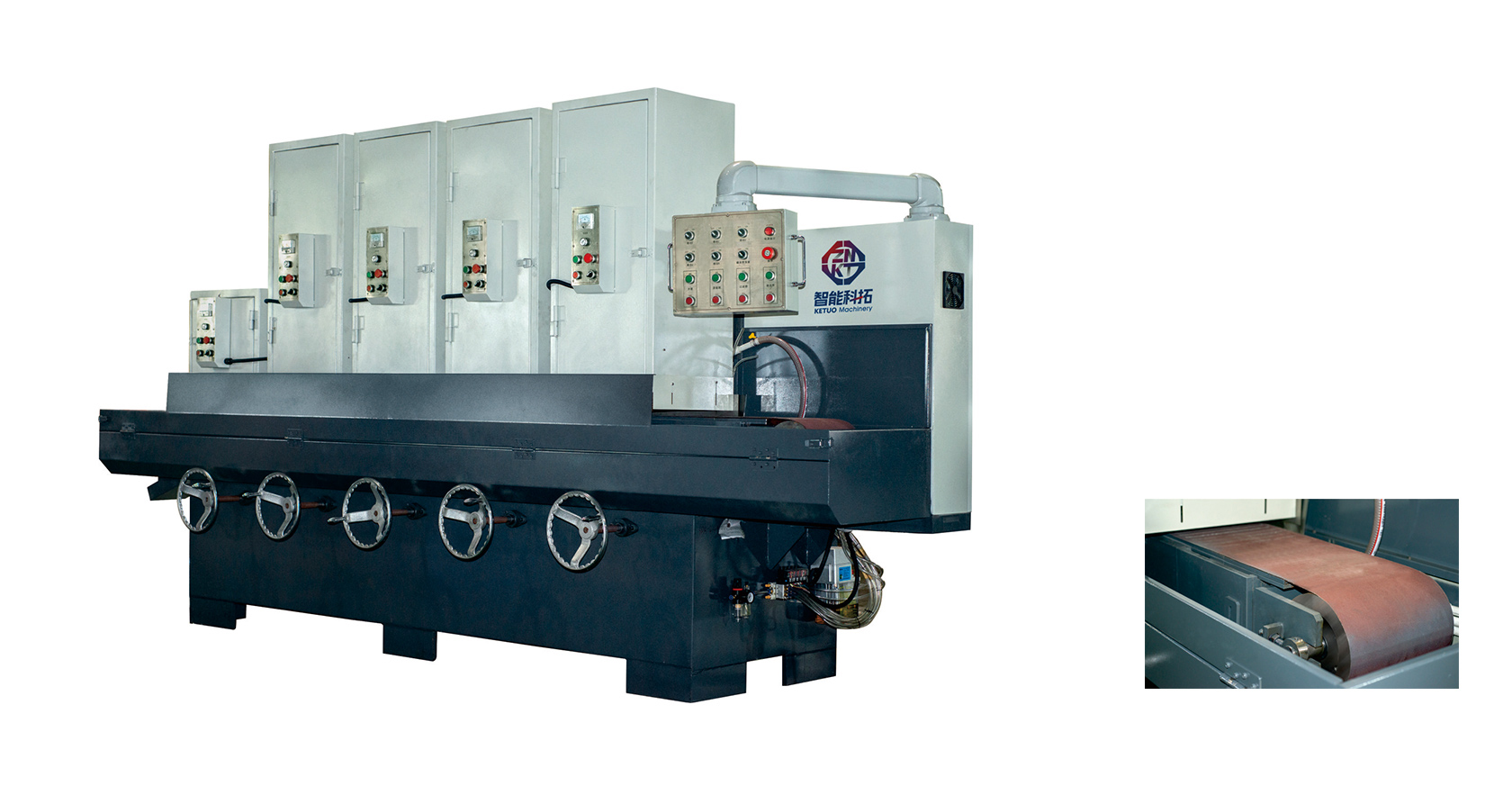

FIVE-STATION SURFACE
BELT SANDER
TECHNICAL DATA SHEET
REQUEST QUOTE
This machine is suitable for surface grinding and polishing of various knives, cutlery, hardware toolsand other workpieces in large-scale production. lt is easy to operate and can continuously and efi.ciently complete the roughing, fine grinding, and polishing processes of products in one go, resultingin high production efficiency.
VIDEO
Technical Specifications
REQUEST INFORMATION
⚫Belt size:2290*280mm
⚫Conveyor belt speed control motor:1.5kw
⚫Conveyor belt size:7950*280mm
⚫Water pump:1.5kw
⚫Polishing wheel diameter:300mm
⚫Separator:250w
⚫Maximum grinding height:70mm
⚫Demagnetizer:200w
⚫Maximum grinding width:270mm
⚫Lubrication system:Centralized central lubrication pump
⚫Main motor:7.5kw*5
⚫Airsource pressure range:0.5Mpa
⚫Oscillation motor:0.25kw*40.37kw
