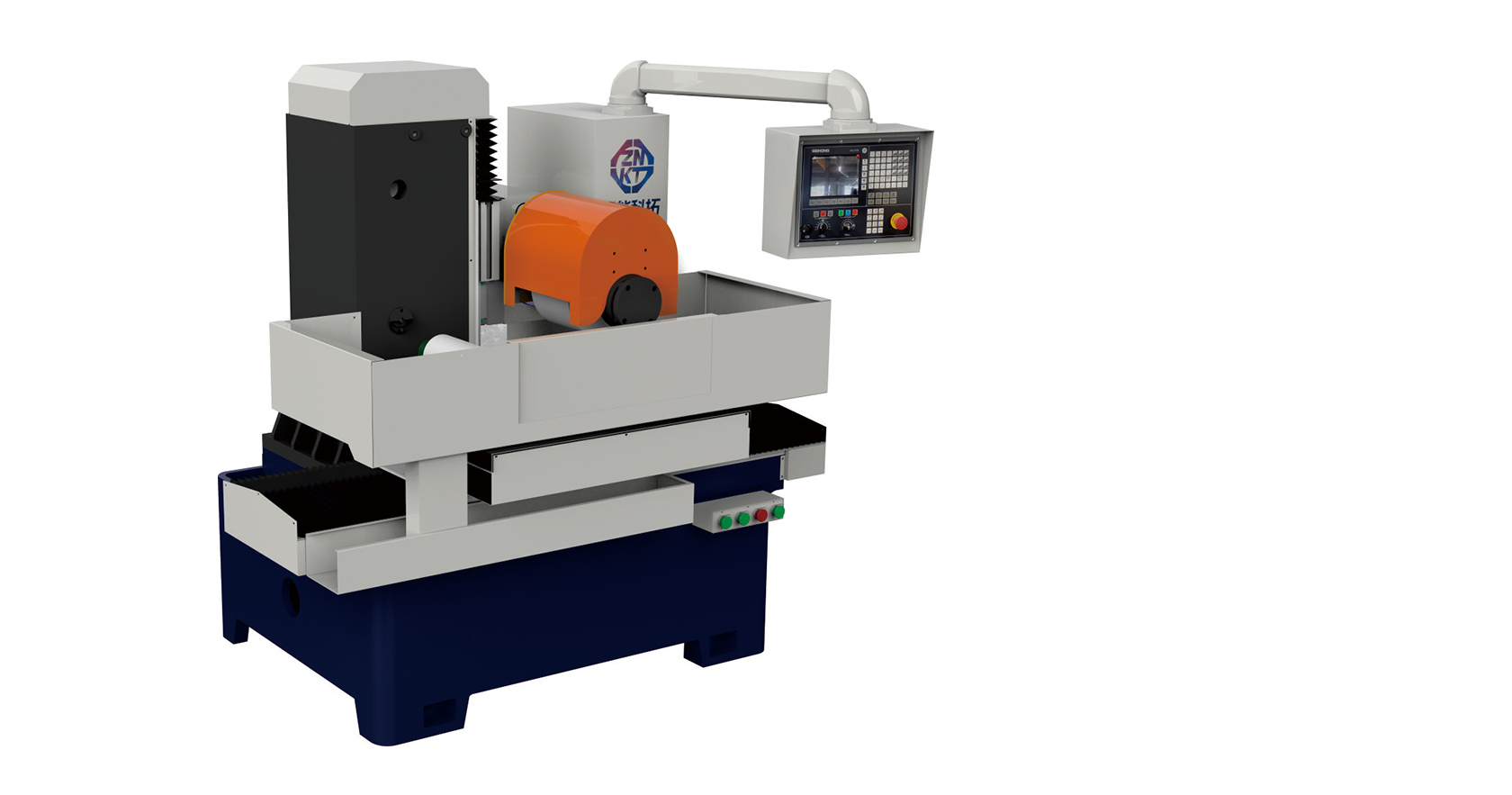

CNC SERRATION MACHINE
TECHNICAL DATA SHEET

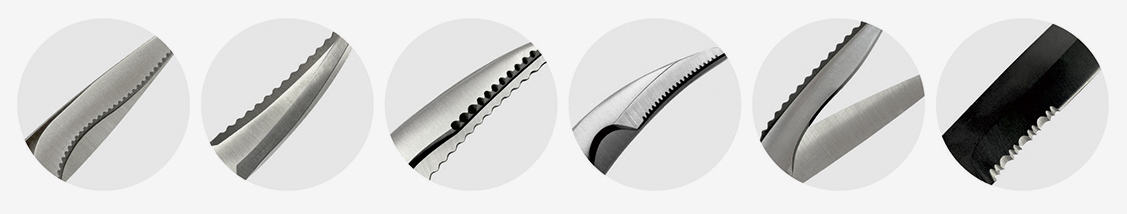

This machine is suitable for serration on various types of cutting tools, scissors, and wire strippingpliers. lt features a CNC three-axis linkage system that allows for importing programmed files or manually writing programs to dress the grinding wheel. Additionally, it can accommodate different serra.tion types by changing the wheel, offering multiple grinding wheel dressing methods to meet diverse production requirements and enhance product manufacturing efficiency.
REQUEST QUOTE
VIDEO
Technical Specifications
REQUEST INFORMATION
⚫Spindle drive power:Star-delta asynchronous motor 7.5kw
⚫Grinding wheel size:Below150-300mm
⚫Mechanical transmission methods:
:X-axis: P3 Heavy-duty roller linear guide (optional cylindrical linear guide)/C3 or P4 ground ball screw
Y-axis: P3 Heavy-duty roller linear guide (optional cylindrical linear guide)/C3 or P4 ground ball screw
Z-axis: P3 Heavy-duty roller linear guide (optional cylindrical linear guide)/C3 or P4 ground ball screw
⚫Drive system: Bus absolute value motor
⚫Lubrication system:Centralized central lubrication pump
⚫CNC system:WEIHONG system
