Single unit dimensions and weight specifications: Length: 2070mm Width: 1620mm Height: 1550mm

Weight: 2500KG Grinding wheel diameter:260mm-355mm

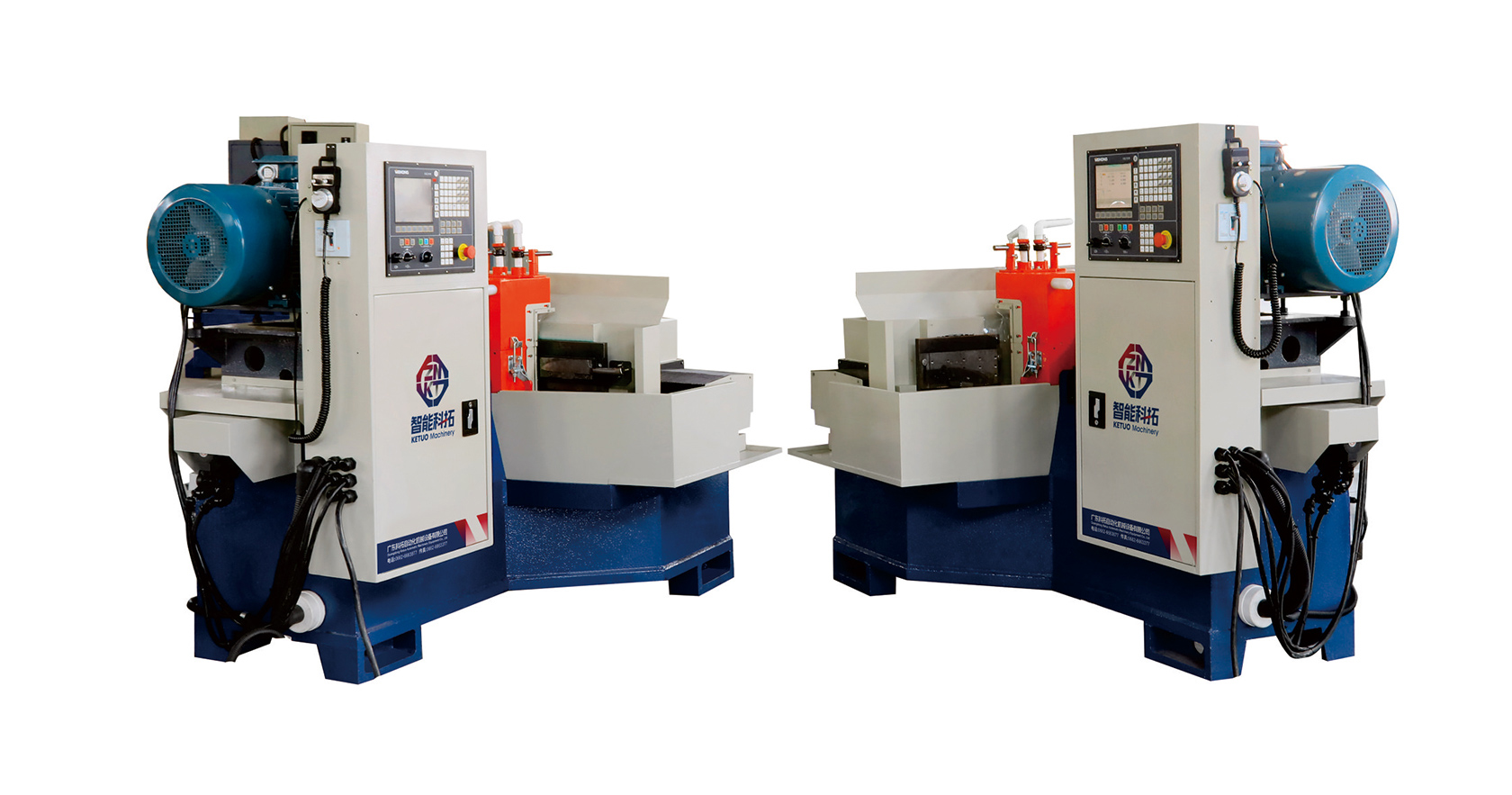

LIGHT LOAD 3-AXIS

GRINDING MACHINE

TECHNICAL DATA SHEET
REQUEST QUOTE
Designed for grinding flat and bevel surfaces using grinding wheels of 355mm and below - ideal forworkpieces with relatively simple grinding lines, such as kitchen knives, tool blades, and scissorblades.
VIDEO
REQUEST INFORMATION
To further improve processing accuracy, our grinding machines can also be equipped with an automatic grinding wheel compemsation sensor. This device can monitor the wear condition of the grinding wheeland automatically compensate to ensure consistency and precision during the processing.
Technical Specifications

⚫Standard version maximum grinding length:385mm(the maximum grinding lenath can be customized according to customer needs)


⚫Spindle drive power: Star-delta asynchronous motor7.5-18.5kw (optional YE4level energy-saving motor or permanent magnet synchronous motor)


⚫Grinding wheel diameter:450mm-535mm


⚫Mechanical transmission method

X-axis: Cylindrical linear guide (optional linear guide)/ Cold-rolled ball screw (optional ground ball screw)

Z-axis: Cylindrical linear guide (optional linear guide)/Cold-rolled ball screw (optional ground ball screw)

A-axis:T-nut/Push plate Structure


⚫Power system:Bus absolute value motor


⚫Lubrication system:Centralized central lubrication pump


⚫Spindle:In house high-strength spindle


⚫CNC system:WEIHONG NK280B system


⚫


⚫


⚫
