OPTIONED FOUR-AXIS LINEAR GUIDE ROTARY GRINDING MACHINE

X-axis:Transverse entry and exit axis of the worktable

(processable up to 380mm)

Z-axis: Grinding wheel feed axis (stroke of 160mm)

(processable up to 380mm)

A-axis:Inclined rotating axis of the worktable (+35 degrees, -5 degrees)(processable up to 380mm)

C-axis:Center rotating axis of the worktable (360 degrees)

(processable up to 380mm)

⚫Maximum arinding length: 380mm (the maximum grinding lenath can be customized according to customer needs

⚫Standard rotating axis worktable diameter: 180mm (can be customized up to 300mm according to customer needs)

⚫Spindle drive power: Star-delta asynchronous motor7.5-18.5kw (optional YE4level energy-saving motoror permanent magnet synchronous motor)

⚫Grinding wheel diameter: 260mm-350mm (for using grinding wheels with a diameter above 350mm, theheavy-duty version model is available)

⚫Mechanical transmission methods:

X-axis: Cylindrical linear quide (optional linear guide) / Cold rolled ball screw (optional ground ball screw)

Z-axis: Cylindrical linear guide (optional linear quide) / Cold rolled ball screw (optional ground ball screw)

A-axis:Precision reducer

C-axis:Precision reducer

⚫Drive system:Bus absolute value motor

⚫Lubrication system:Centralized central lubrication pump

⚫Spindle:A2-6 hiqh-strength precision spindle

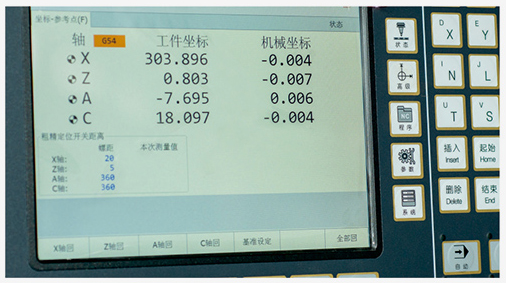

⚫CNC system:WEIHONG NK280B system
