Single unit dimensions and weight specifications: Length: 2300mm  Width: 1620mm  Height: 1660mm  Weight: 3500KG

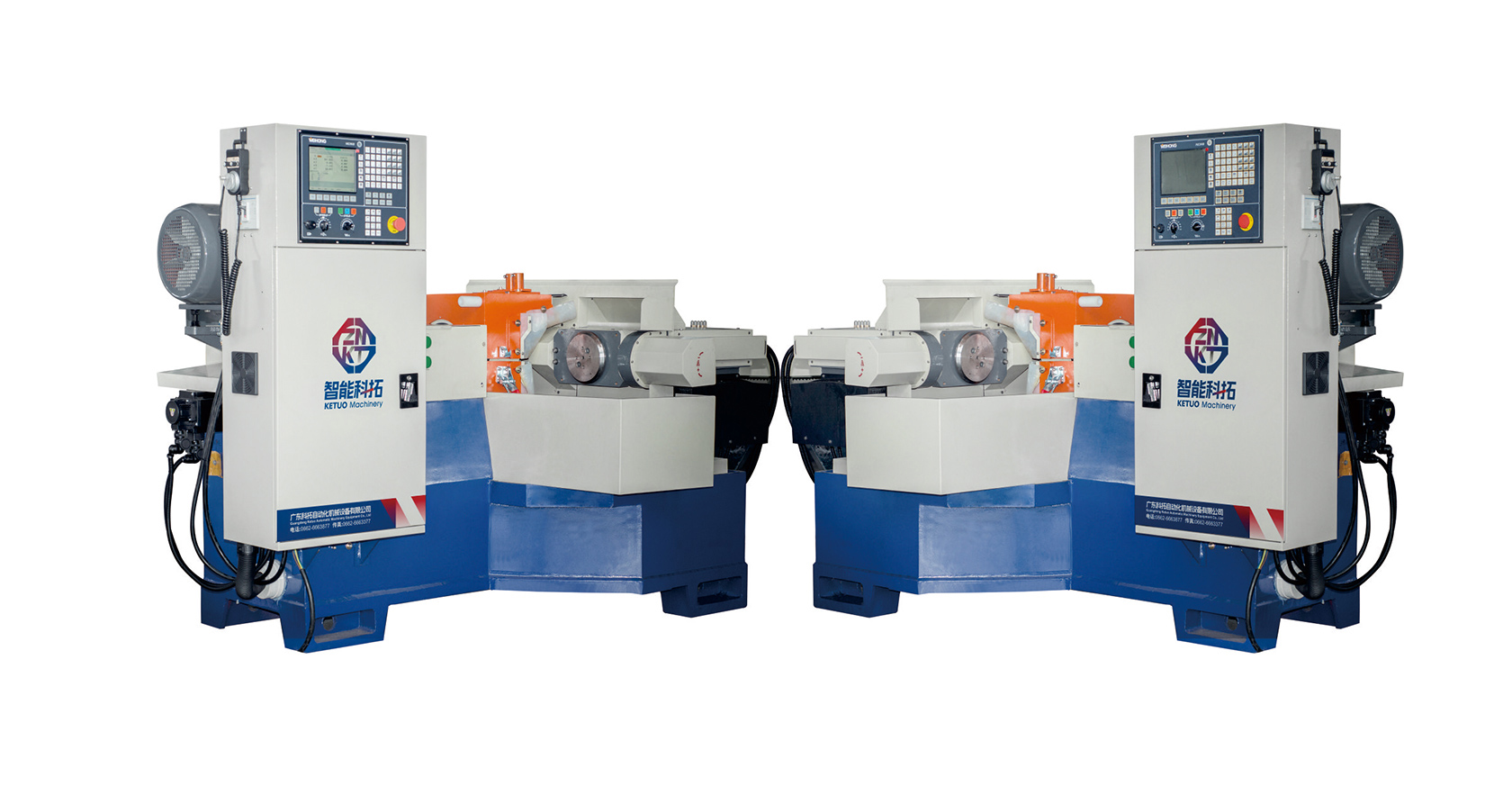

STANDARD 4-AXIS
ROTARY GRINDING MACHINE

TECHNICAL DATA SHEET
REQUEST QUOTE

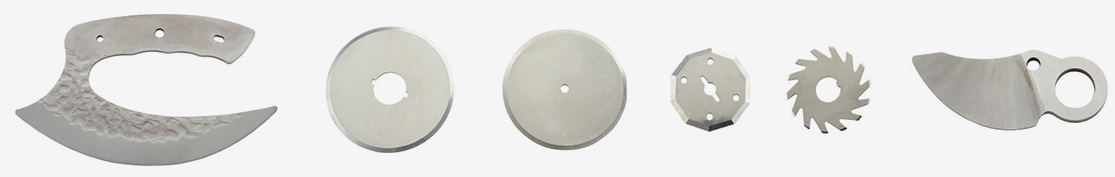

Designed specifically for workpieces that require curved grinding, such as gardening scissors blades.
fence cutting scissors blades, axes, and 360-degree circular blades.
VIDEO
REQUEST INFORMATION
To further improve processing accuracy, our grinding machines can also be equipped with an automatic grinding


.wheel compemsation sensor. This device can monitor the wear condition ofthe grinding wheel and auto-matically


compensate to ensure consistency and precision during the processing

Technical Specifications

⚫Maximum grinding length: 380mm (the maximum grinding length can be customized according to customer needs)


⚫Standard rotating axis worktable diameter: 180mm (can be customized up to 300mm according to customer needs)


⚫Spindle drive power: Star-delta asynchronous motor7.5-18.5kw (optional YE4levelenergy-saving motor orpermanent magnet synchronous motor)


⚫Grinding wheel diameter:260mm-350mm (for using grinding wheels with a diameter above 350mm,the heavy-dutyversion modelis available)


⚫Mechanical transmission methods:.

X-axis: Cylindrical linear auide (optional linear guide)/ Cold rolled ball screw (optional ground ball screw):

Z-axis: Cylindrical linear guide (optional linear quide)/ Cold rolled ball screw (optional ground ball screw)

A-axis:Precision reducer

C-axis:Precision reducer


⚫Drive system:Bus absolute value motor


⚫Lubrication system:Centralized central lubrication pump


⚫Spindle:In-house high-strength spindle


⚫CNC system:WEIHONG NK280B system
