Single unit dimensions and weight specifications: Length: 1700mm Width: 1210mm  Height: 2200mm Weight: 3000KG

VERTICAL 3-AXIS

GRINDING MACHINE

TECHNICAL DATA SHEET
REQUEST QUOTE

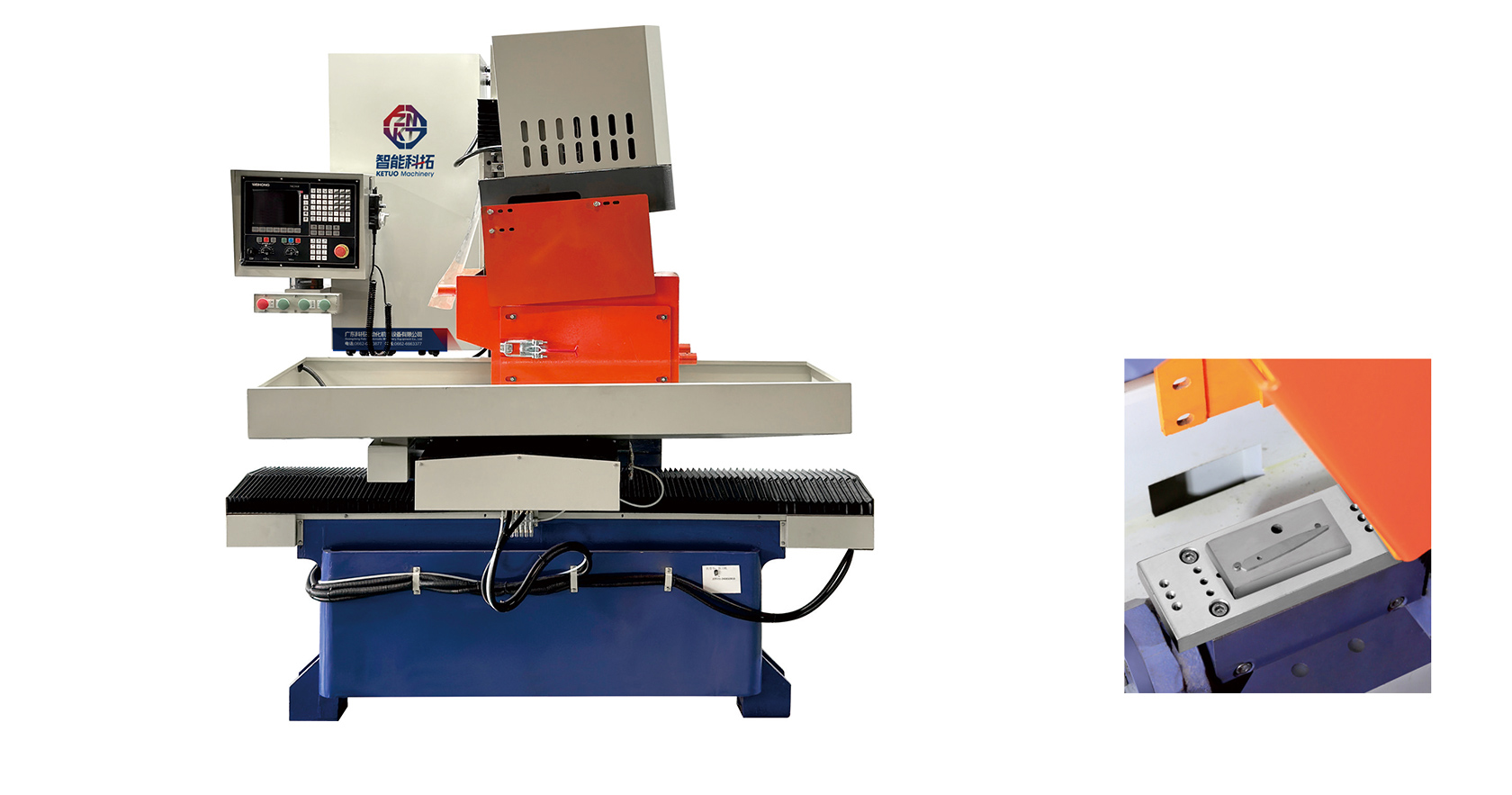

This adjustable spindle vertical three-axis grinding machine is specifically designed for surface grind.ing and cylindrical grinding of workpieces, saving up to 30% space compared to horizontal models. ltcan be used for processing concave surfaces and beveled surfaces ofscissors, etc.
VIDEO
Four-Axis Grinding Worktable
X-axis: Effective travel of 480mm (processable length of 380mm)
REQUEST INFORMATION
X-axis:Grinding wheel feed axis(stroke of 160mm)
Y-axis(assorting):Effective stroke 200mm
Technical Specifications

⚫Standard worktable size: 380mm*150mm (optional electric magnetic chuck and customizable processing length according to customer needs)


⚫Spindle drive power: Star-delta asynchronous motor 18.5kw (optional YE4level energy-saving motor or permanent magnet synchronous motor)


⚫Grinding wheel diameter:355mm


⚫Mechanical transmission methods:

X-axis: P3 heavy-duty roller linear guide /Cold rolled ball screw (optional ground ball screw)

Z-axis: P3 heavy-duty roller linear guide/Cold rolled ball screw (optional ground ball screw)

A-axis: Worm gear plus or minus 30 degrees (optional RV reducer)

TheA-axis can be selected as the Y-axis with customizable travel


⚫Drive system:Bus absolute value motor


⚫Lubrication system:Centralized central lubrication pump


⚫Spindle: Self-developed high-strenath spindle (optionalA2-6 hiah-strenath precision spindle)


⚫CNC system:WEIHONG NK280B system
