Single unit size and weight specifications: Length: 2300mm Width: 1620mm Height: 1660mm Weight: 3000KG

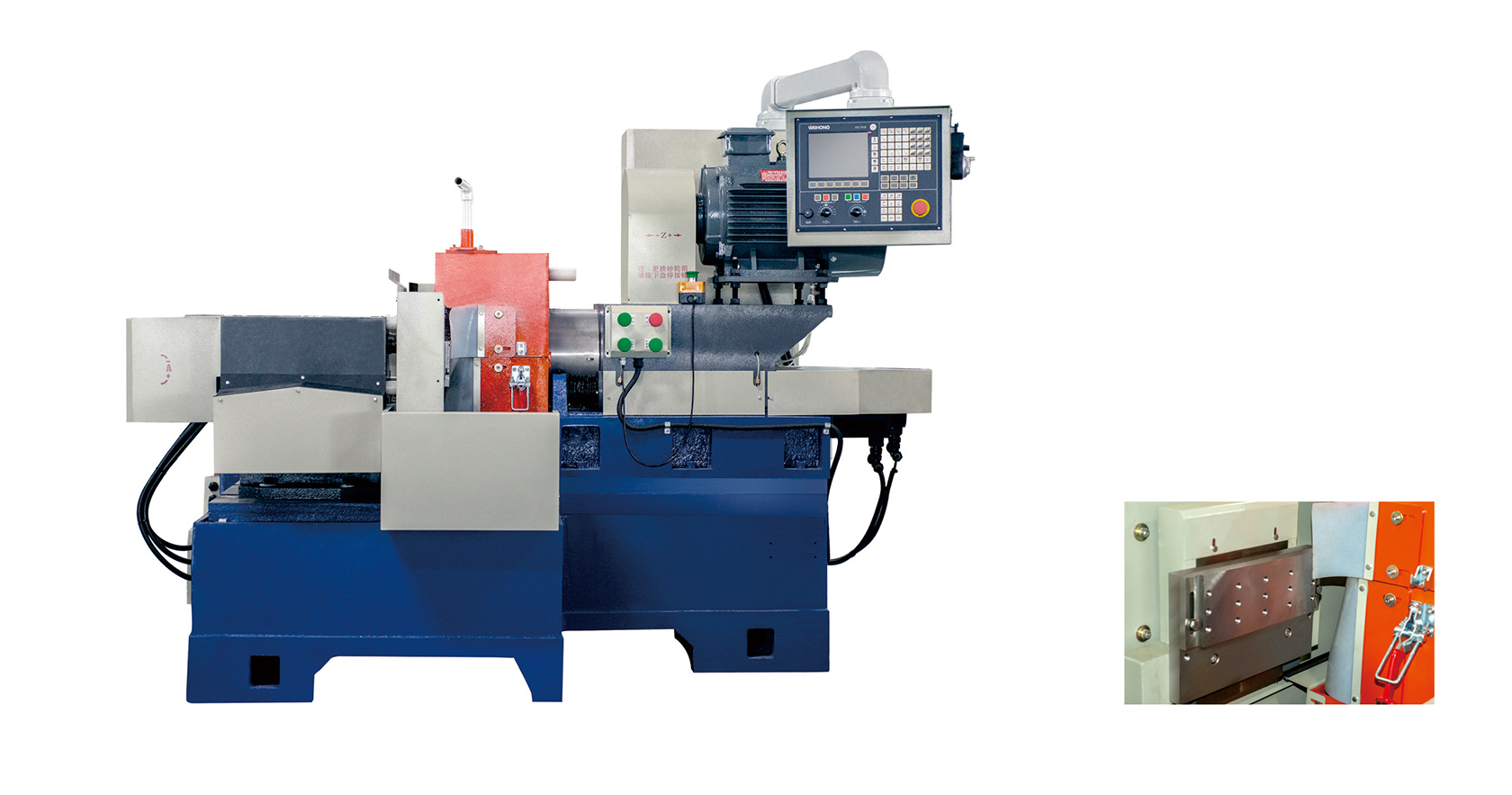

STANDARD 3-AXIS

GRINDING MACHINE

TECHNICAL DATA SHEET
REQUEST QUOTE

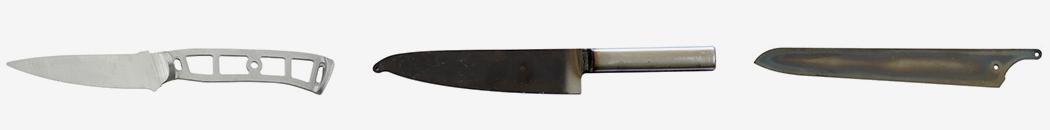

Grinding of flat and bevel surfaces - designed for relatively simple grinding lines of workpieces such askitchen knives, tool blades, and scissor blades.
VIDEO
REQUEST INFORMATION
To further improve processing accuracy, our grinding machines can also be equipped with an automat.ic grinding wheel compemsation sensor. This device can monitor the wear condition of the grindingwheel and automatically compensate to ensure consistency and precision during the processing.
Technical Specifications

⚫Standard version maximum grinding length:385mm(the maximum grinding length can be customized according to customer needs)


⚫Spindle drive power: Star-delta asynchronous motor7.5-18.5kw (optionalYE4levelenergy-saving motor or permanent magnet synchronous motor)


⚫Grinding wheeldiameter:450mm-535mm


⚫Mechanical transmission method

X-axis: Cylindrical linear guide (optional linear guide)/ Cold-rolled ball screw (optional ground ball screw).

Z-axis: Cylindrical linear guide (optional linear guide)/ Cold-rolled ball screw (optional ground ball screw)

A-axis:T-nut/Push plate Structure


⚫Power system: Bus absolute value motor


⚫Lubrication system:Centralized central lubrication pump


⚫Spindle:In house high-strength spindle


⚫CNCsystem:WEIHONG NK280B system
